The Cost Comparison Nobody Shows You

Technology

The Science of Laser Ablation

Laser cleaning sends short pulses of light onto a surface. The contaminant or coating absorbs energy differently from the underlying material. When process parameters are properly matched to the substrate, the unwanted layer can be removed while minimizing substrate impact.

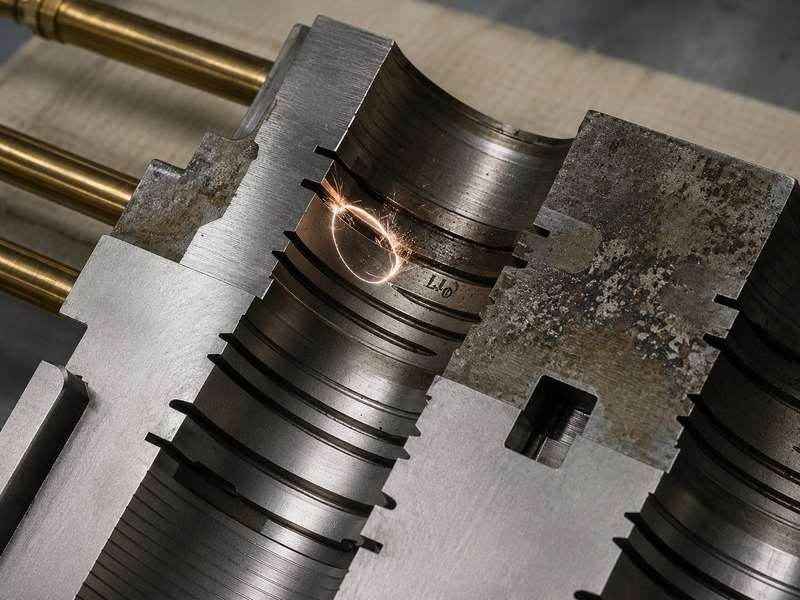

Injection mold surface during laser cleaning project example

A 4-Step Molecular Clean

Scanning

High-speed optics scan the surface, identifying contaminant layer thickness.

Absorption

Contaminants absorb the light energy, causing rapid thermal expansion.

Ablation

Laser energy removes rust or paint in controlled passes. Test areas and tuned parameters are used to manage heat input and confirm the substrate response.

Pristine Finish

A surgically clean surface ready for coating or welding.

Precision vs. Force

For method-selection factors, limitations, and total-project-cost considerations, see Why Laser Cleaning.

Factor

Laser

Sandblasting

Chemical

Substrate Damage

Test-area verification required

Abrasive pitting

Potential etching

Substrate Damage

No spent abrasive media; captured material remains project-specific

Tons of blast media

Toxic sludge

Indoor Use

Yes—without blast-media containment. Laser safety controls and any contaminant-specific capture or containment still apply.

Full containment required

Ventilation required

Permitting Requirements
No blast-media permit; other requirements depend on the site, material, and scope
Often required

Hazardous waste permits

Disposal Costs

No spent-media disposal; removed material, captured particulate, and filters are project-specific
$1,000+/ton (lead-bearing)

$500+/drum

OSHA Silica
Not applicable
Full compliance required

Chemical exposure PPE

Why Laser for Historic Graffiti Removal

No Media

No sand, glass beads, or abrasive media to purchase, contain, or dispose of. The laser uses only electricity.

No Chemicals Used

No acids, no VOCs, no hazardous solvents. No chemical exposure for your workers or your neighbors.

Less Permit Complexity

The laser process does not add blast media, rinse water, or chemical stripper. Air, noise, environmental, containment, and waste-documentation requirements depend on the material removed, site, and jurisdiction. Review the Compliance Center during project planning.

The Physics: Why the Substrate Survives

Every material has a specific absorption spectrum. Rust (iron oxide), paint (organic polymers), grease (hydrocarbons), and carbon deposits all absorb infrared light at the 1064nm wavelength produced by our Nd:YAG fiber laser. When these contaminants absorb the laser pulse, they heat to plasma temperature in nanoseconds and vaporize.
The base metal (steel, aluminum, copper, cast iron, titanium) reflects this same wavelength. The laser energy bounces off the substrate without transferring meaningful heat. The heat-affected zone on the metal surface is measured in microns, not millimeters. There is no measurable dimensional change, no thermal distortion, and no metallurgical alteration to the base material.

This selective absorption is not a tuning trick. It is a physical property of the materials. Organic contaminants and metal oxides absorb infrared. Clean metals reflect infrared. The laser exploits this difference automatically. When the contaminant is gone, the laser energy reflects off the clean metal and the cleaning stops. The system is self-limiting.

What Laser Cleaning Removes

Rust and Oxides

  • Iron oxide (all ISO 8501-1 grades)
  • Mill scale
  • Weld discoloration
  • Heat-affected zone oxides
  • Flash rust
  • Aluminum oxide layers

Rust and Oxides

  • Iron oxide (all ISO 8501-1 grades)
  • Mill scale
  • Weld discoloration
  • Heat-affected zone oxides
  • Flash rust
  • Aluminum oxide layers

Rust and Oxides

  • Iron oxide (all ISO 8501-1 grades)
  • Mill scale
  • Weld discoloration
  • Heat-affected zone oxides
  • Flash rust
  • Aluminum oxide layers

Rust and Oxides

  • Iron oxide (all ISO 8501-1 grades)
  • Mill scale
  • Weld discoloration
  • Heat-affected zone oxides
  • Flash rust
  • Aluminum oxide layers

Compatible Substrates

Laser cleaning works on any substrate that reflects infrared light while its contaminant layer absorbs it. In practice, this covers every common industrial and architectural material: carbon steel, stainless steel, aluminum, cast iron, copper, brass, bronze, titanium, nickel alloys, tool steel, hardened steel, and galvanized steel.
Non-metallic substrates that reflect or transmit the laser wavelength are also compatible: limestone, sandstone, granite, marble, brick, terra cotta, concrete, and some hardwoods. The laser parameters (pulse frequency, power density, scan speed) are adjusted for each substrate to optimize contaminant removal while preserving the surface.

Materials that absorb the 1064nm wavelength without a contaminant layer present (some plastics, rubber, certain composites) are not suitable for laser cleaning. We verify substrate compatibility during the scoping process before quoting any job.

Safety and Equipment

Our laser systems are Class 4 per ANSI Z136.1. Every job is supervised by a appropriately trained Laser Safety Officer (LSO). Safety controls include opaque beam enclosures sized to the work area, IR-filtering safety goggles for all personnel within the nominal hazard zone, warning signage and controlled access barriers, and a HEPA fume extraction system that captures all vaporized material.
The safety zone for a typical job is 10-15 feet around the work area, marked with signage. This is significantly smaller than the exclusion zone required for sandblasting (which includes blast media trajectory, dust cloud, and noise radius). Adjacent trades and building occupants are not affected.
In New York City, the NYS Department of Labor requires a Project requirements review for Class 4 laser operators. We hold this certification. No other mobile laser cleaning service in the tri-state advertises it.

Our mobile unit carries all required safety equipment: the laser system, generator, fume extraction unit with HEPA filtration, Class 4 enclosure panels, safety goggles for all on-site personnel, warning signage, and fire extinguisher. One truck. One operator. Complete self-contained operation.

Frequently Asked Questions

Our systems operate at 500W-1500W average power with nanosecond pulse durations. Class 4 laser work requires a documented laser-safety plan, trained personnel, controlled access, suitable barriers, eyewear, and other controls selected for the site. Laser cleaning does not create an abrasive-media projectile or dust cloud and adds no chemical-stripper fumes, but airborne emissions still require source capture and the beam-control boundary must be verified for the work area.

The contaminant is vaporized into a plasma plume and fine particulate. Our HEPA fume extraction system captures this material at the point of ablation. The captured material accumulates in a filter cartridge weighing ounces to pounds depending on job size. Compare this to sandblasting, which generates tons of spent media per project.

Modern fiber laser sources (IPG, Raycus, JPT) have a mean time between failure (MTBF) of 50,000-100,000 hours. At 1,500 operating hours per year, the laser source will function for 30-60+ years without replacement. The only consumables are protective optics windows ($15-$40 each, replaced every 20-50 hours) and HEPA filter cartridges.
Yes, laser cleaning works outdoors in dry conditions. Rain or standing water on the substrate reduces effectiveness because the water absorbs laser energy before it reaches the contaminant. We schedule outdoor work for dry conditions. Indoor work is unaffected by weather.
Minimum job charge is $750 to cover mobilization and setup. There is no maximum. We have cleaned individual weld joints (15 minutes) and multi-day structural steel projects (5,000+ square feet). Job size is limited only by the schedule, not by the equipment.

We arrive with one truck containing the laser system, generator, fume extraction, and safety equipment. Setup takes 30-60 minutes: position the generator, connect the laser and extraction, erect the safety enclosure around the work area, verify enclosure integrity, and begin cleaning. Teardown takes 20-30 minutes. The footprint is one parking-space-sized truck plus the safety zone around the work area.
