Project Gallery
A mix of project photographs and representative illustrations showing common laser-cleaning applications and visual outcomes. Representative images—including AI-generated examples—illustrate possible use cases and are not claims about a specific completed Tri-State Laser Cleaning project.
This laser cleaning gallery groups examples by surface and task. Use the laser cleaning gallery to identify a comparable application, then send photos of your own surface for review. Results depend on the material, deposit and required finish.
For laser work-area planning, see OSHA laser hazard standards. Review site conditions and the agreed controls before scheduling.
In ProgressStructural Steel Laser Cleaning
High-power laser ablation on structural steel beam. Spark shower as oxide layer and mill scale are vaporized.

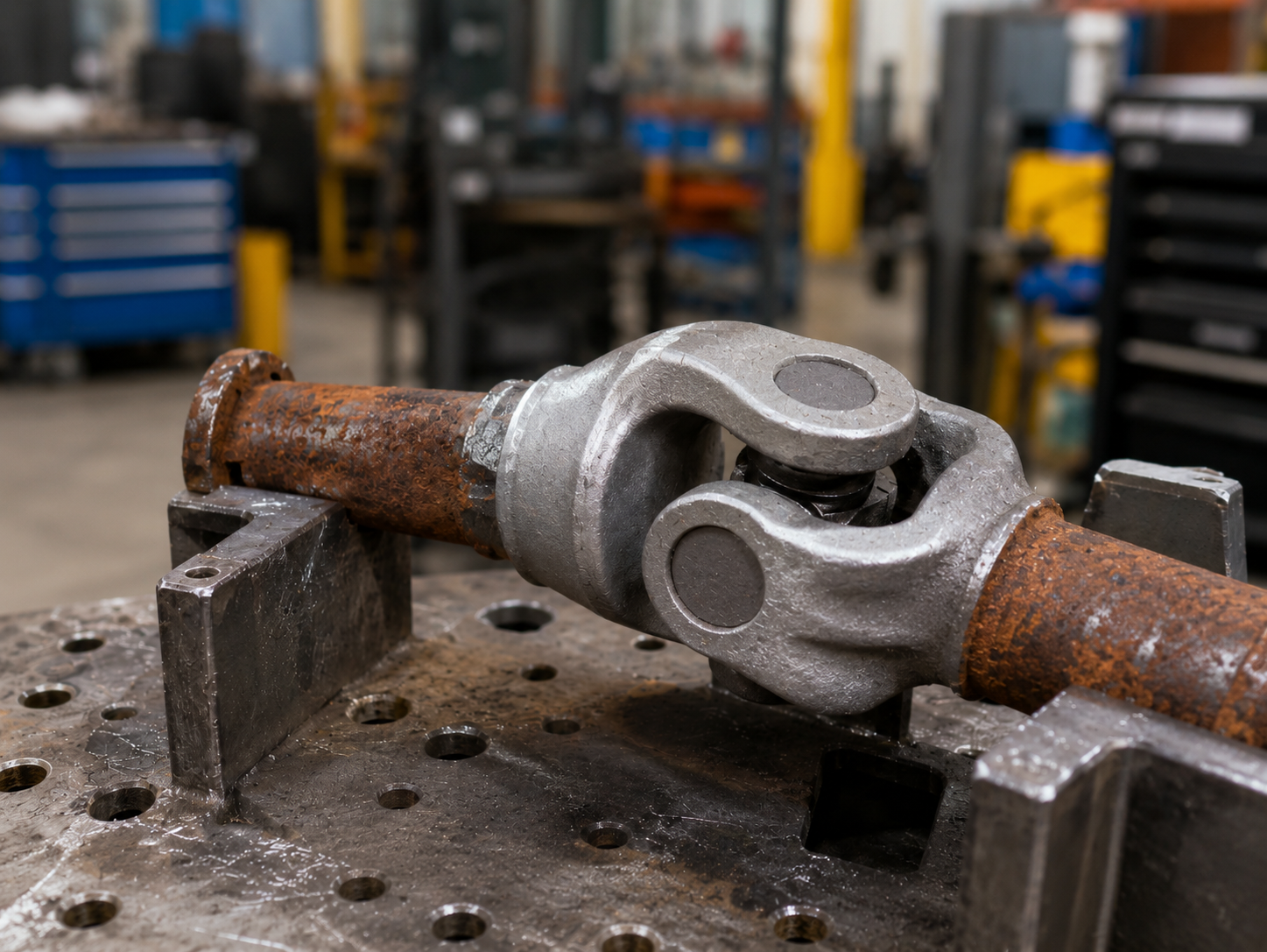

Before/AfterU-Joint Heavy Rust Removal
Universal joint with heavy rust and scale. Clean steel with all machined surfaces preserved.

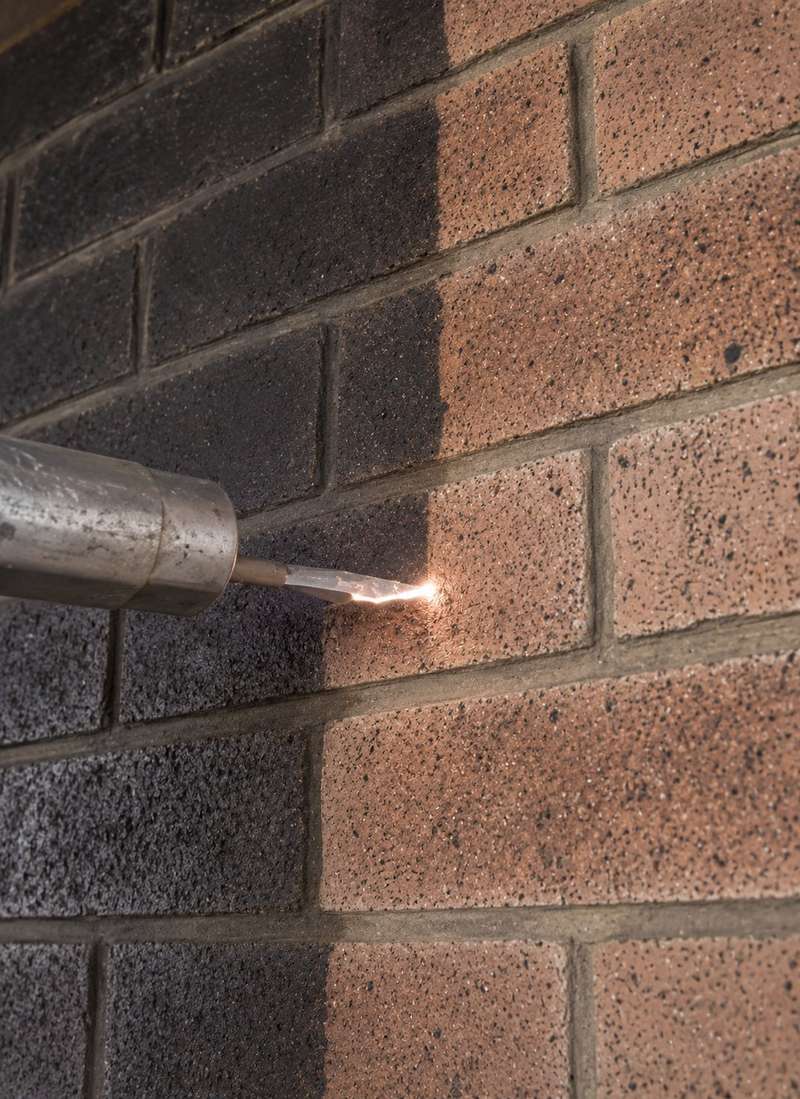

In ProgressSoot Removal from Brick Wall
Laser nozzle vaporizing smoke and soot deposits from brick after fire damage. No water, reduced chemical handling.

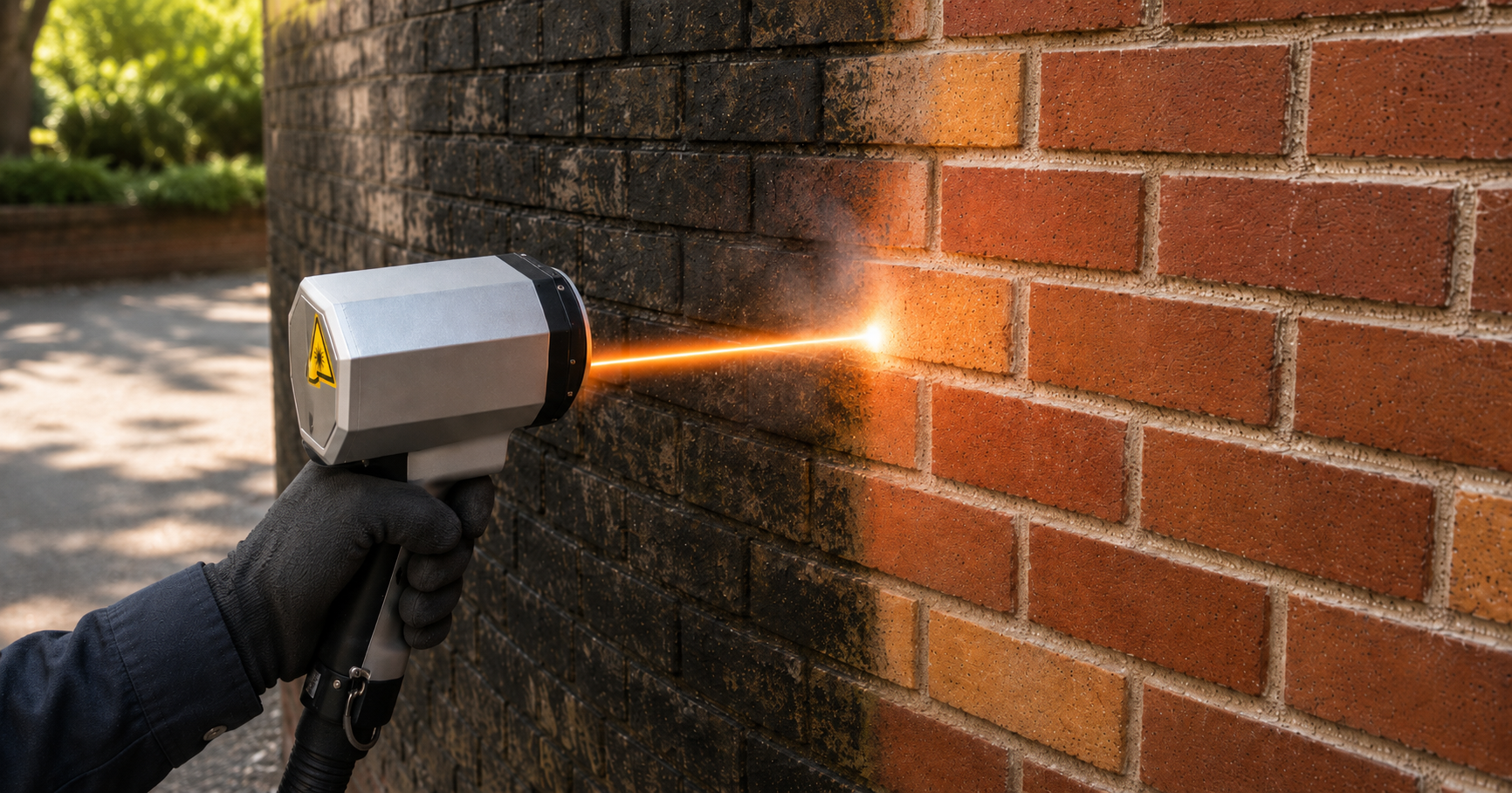

In ProgressFire Damage Brick Restoration
Handheld laser unit cleaning soot from brick corner. Original brick color restored. Mortar joints intact.

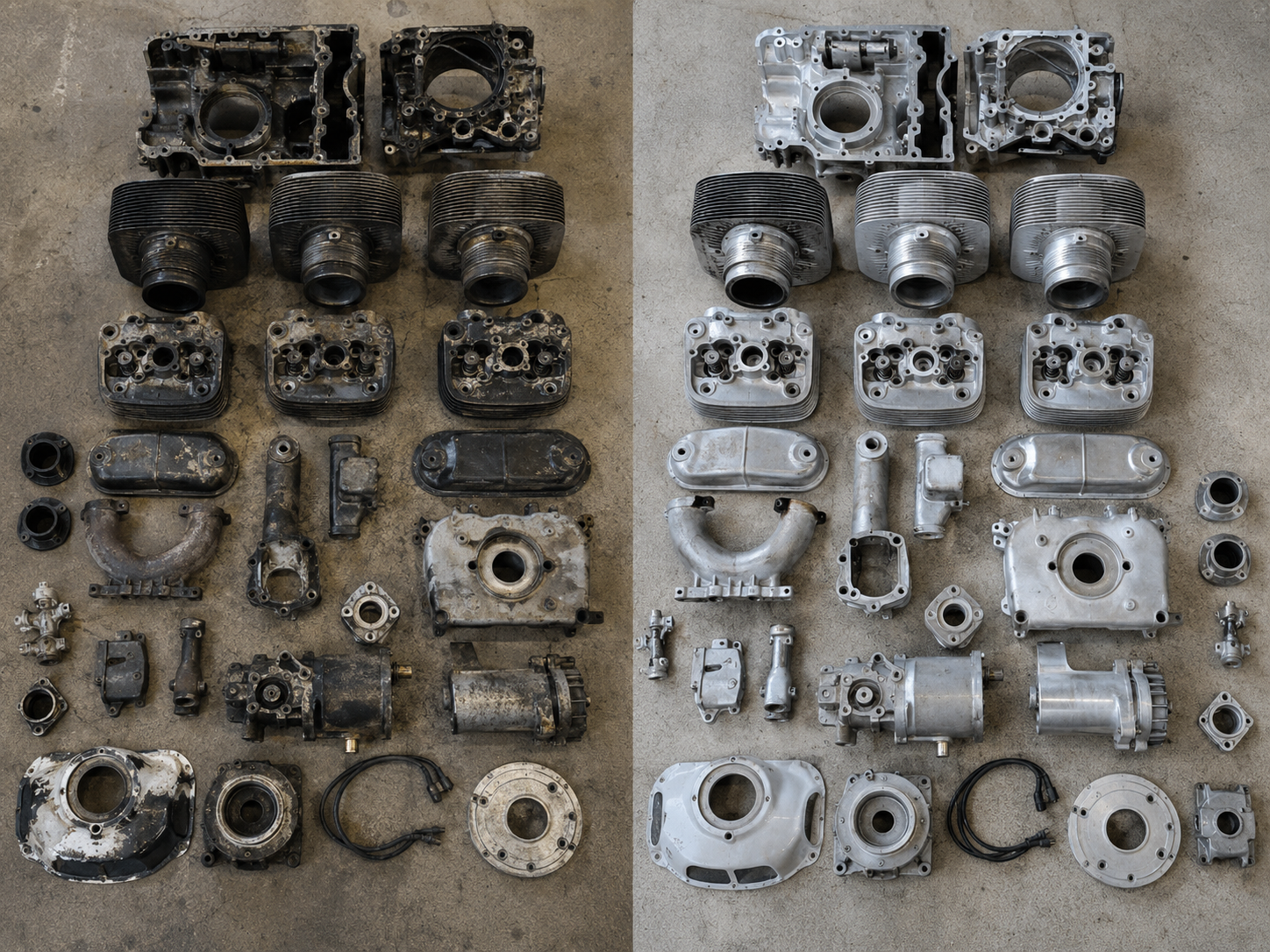

Before/AfterComplete Engine Teardown Cleaning
Full engine teardown. Every component cleaned: block, heads, cylinders, flywheel, fan, starter, oil pump.
Before/AfterEngine Housing Restoration
Aluminum engine housing. 40+ years of oil, carbon, and oxidation removed. Original casting marks visible.
CompletedGearbox Case Restoration
Aluminum gearbox case. Oil, carbon, and oxidation removed from every surface and cavity.
Before/AfterEngine Block Carbon Removal
4-cylinder aluminum block. Carbon buildup and gasket residue stripped from deck and cylinders.

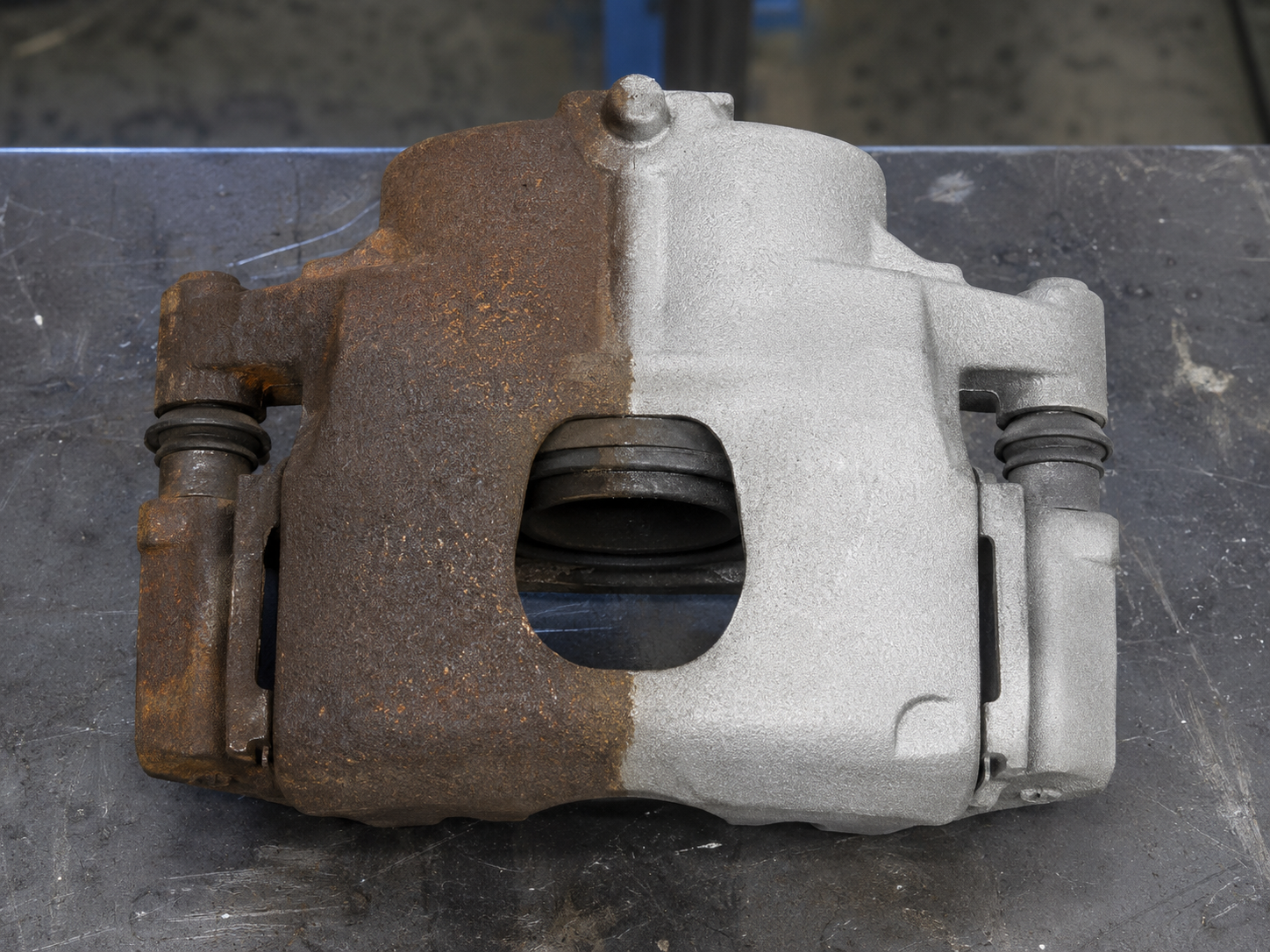

Before/AfterBrake Caliper Rust Removal
Cast iron brake caliper. Heavy oxidation removed to expose the underlying cast iron; dimensional acceptance requires measurement when specified.
In ProgressHandheld Laser Mold Cleaning
Operator cleaning production mold with handheld laser unit. No disassembly from press required.

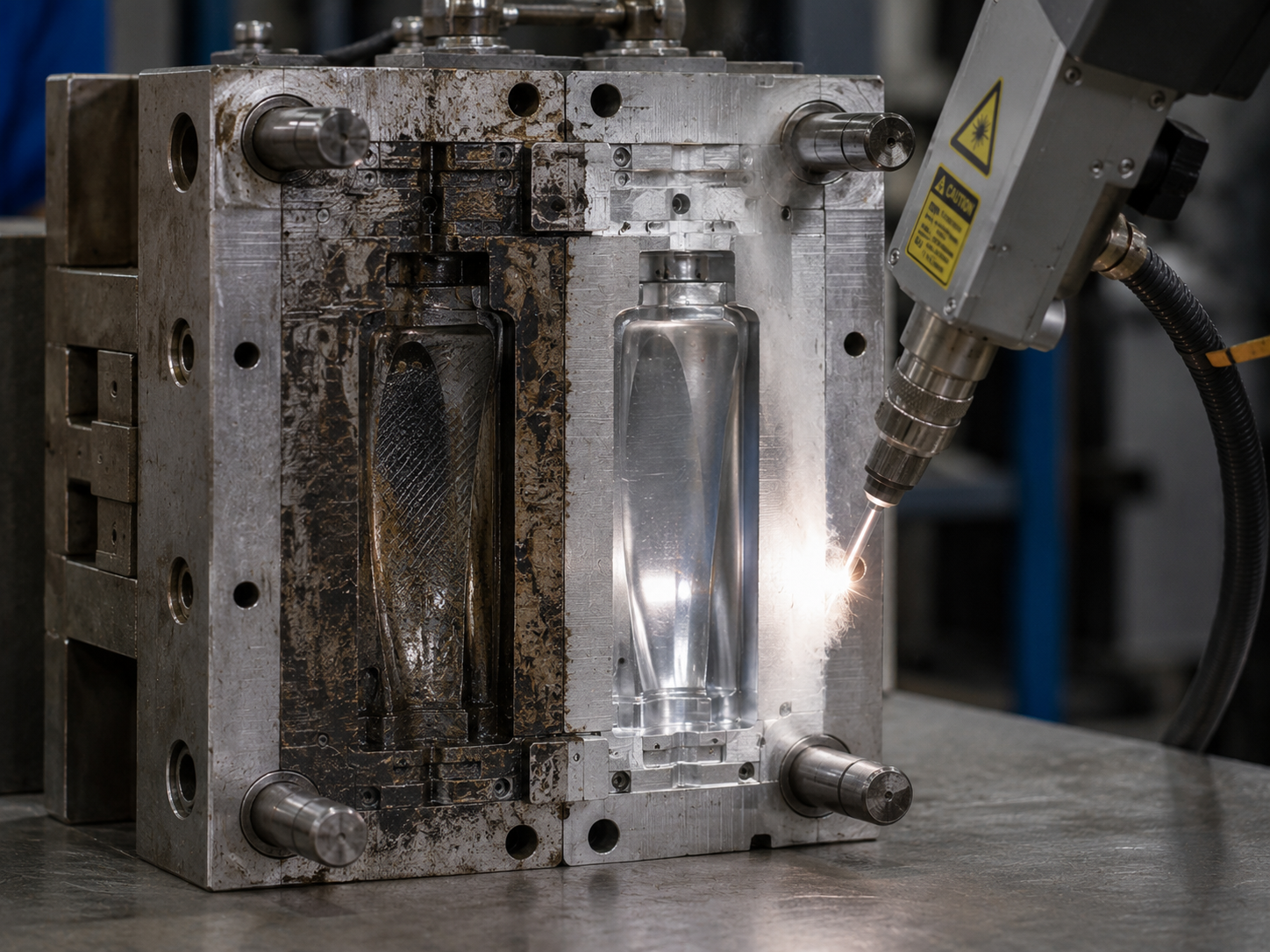

In ProgressMold Cleaning In Progress
Precision injection mold during laser cleaning. Laser spark visible. Release agent buildup removed.

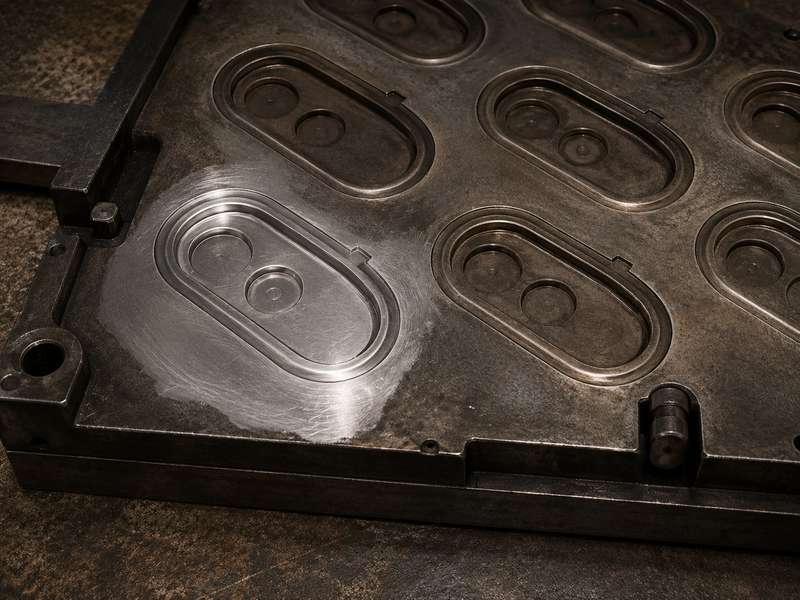

Before/AfterProduction Mold Before/After
Steel production mold, half cleaned; tooling-surface acceptance requires the customer’s specified inspection or measurement.
CompletedInjection Mold Cleaned
Steel injection mold with complex cavity. Release agent residue and micro-corrosion removed.

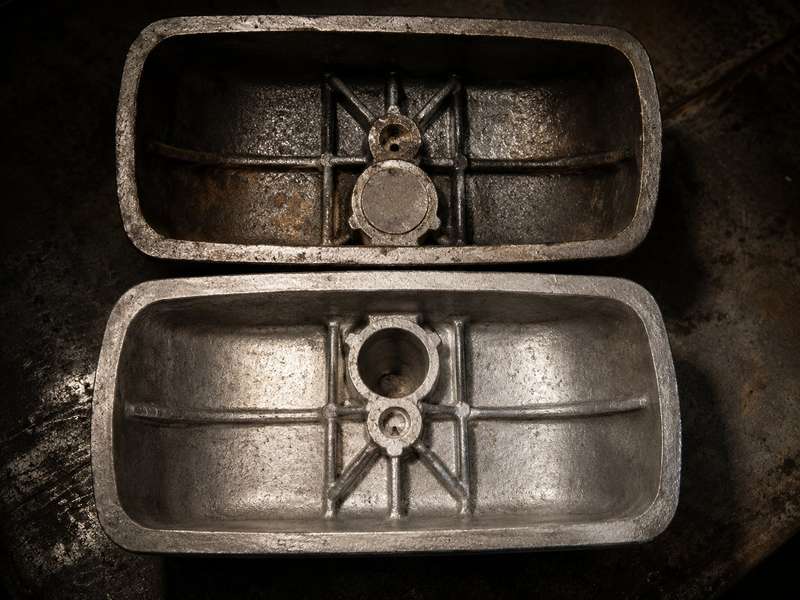

Before/AfterValve Cover Mold Cleaning
Cast aluminum molds. Oxidation and carbon from production cleaned. Internal geometry untouched.

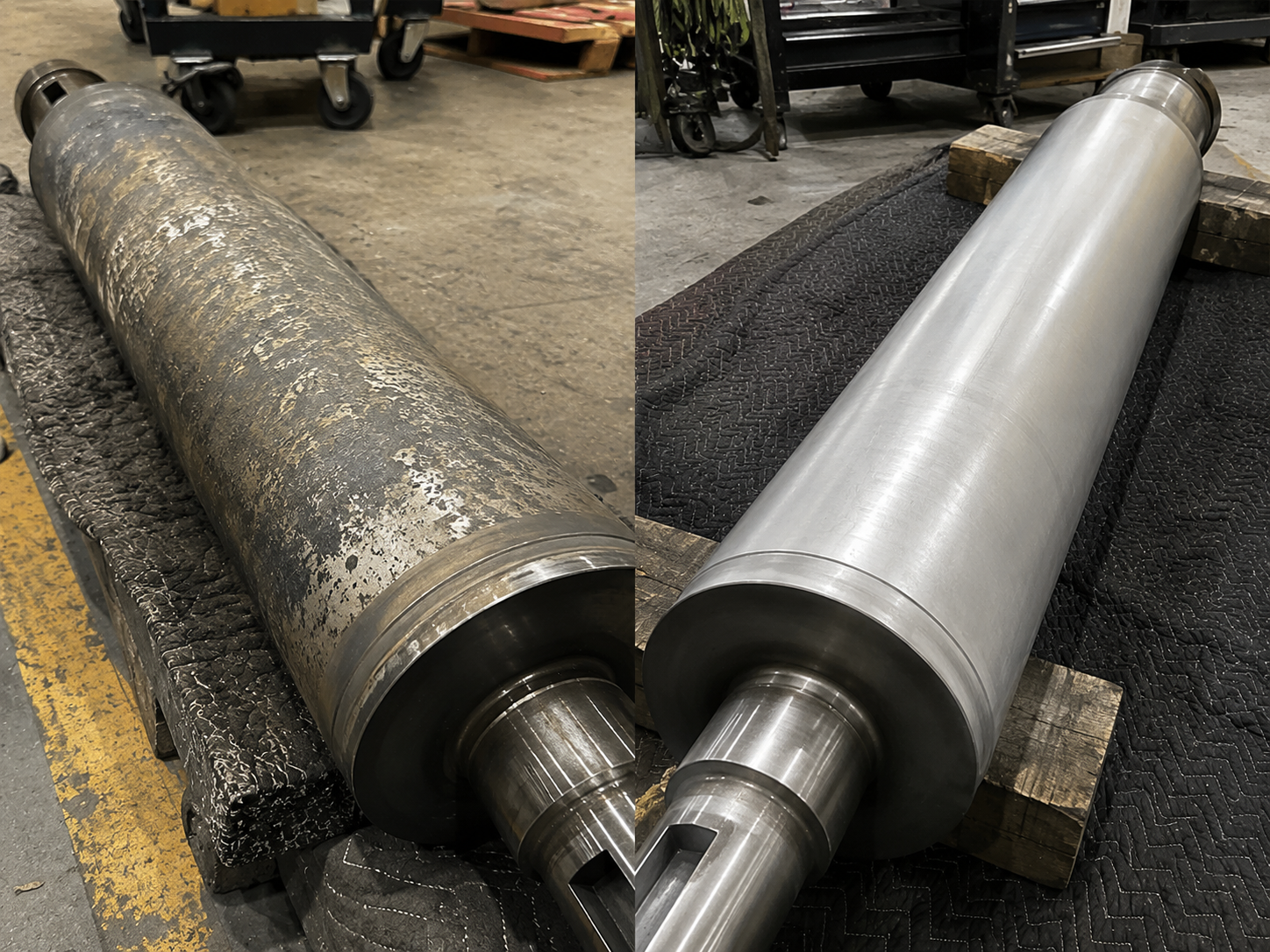

Before/AfterIndustrial Roller Rust Removal
Steel conveyor rollers. Heavy surface rust cleaned to polished steel. Same-day return to service.

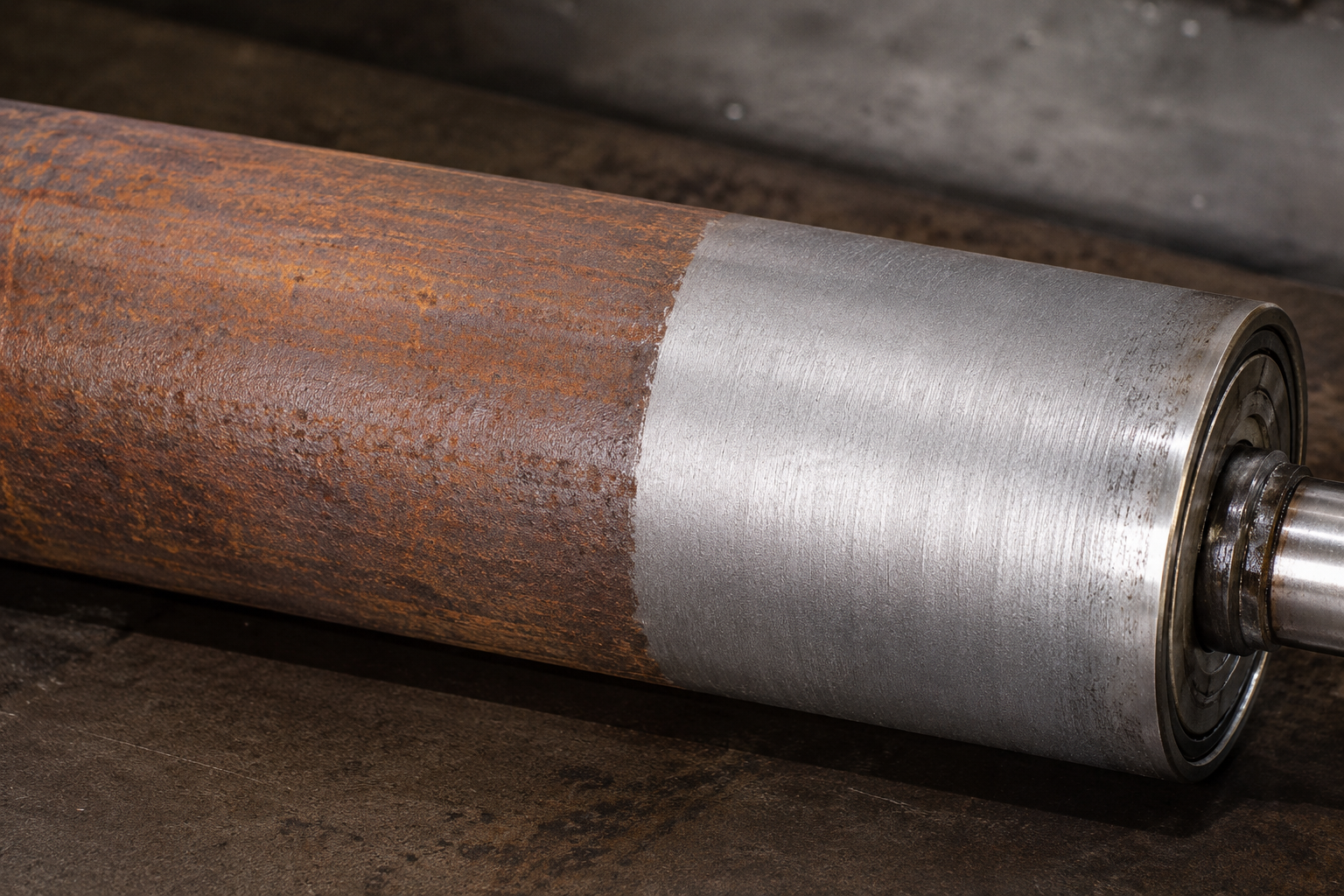

Before/AfterIndustrial Roller Coating Prep
Production rollers stripped and cleaned to bare metal for re-coating.
In ProgressTurbine Component Rust Removal
Gas turbine shroud ring. Blades and hub cleaned to bare alloy.

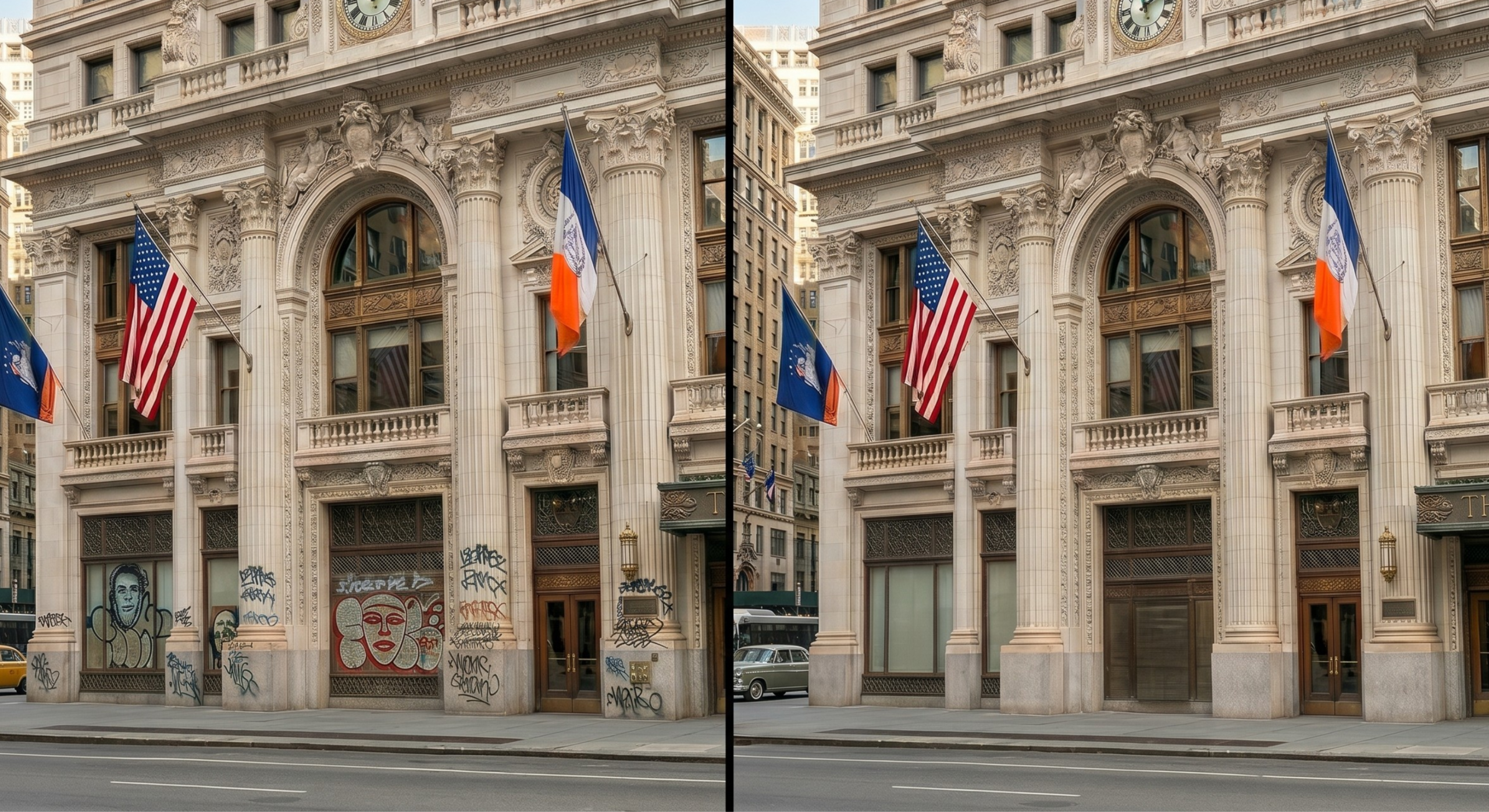

Before/AfterHistoric Facade Restoration
Multi-story brick and masonry facade. Decades of soot, pollution, and graffiti removed.
In ProgressLaser Cleaning Stone Molding
Limestone architectural molding. Laser ablation removing 100 years of pollution deposits.

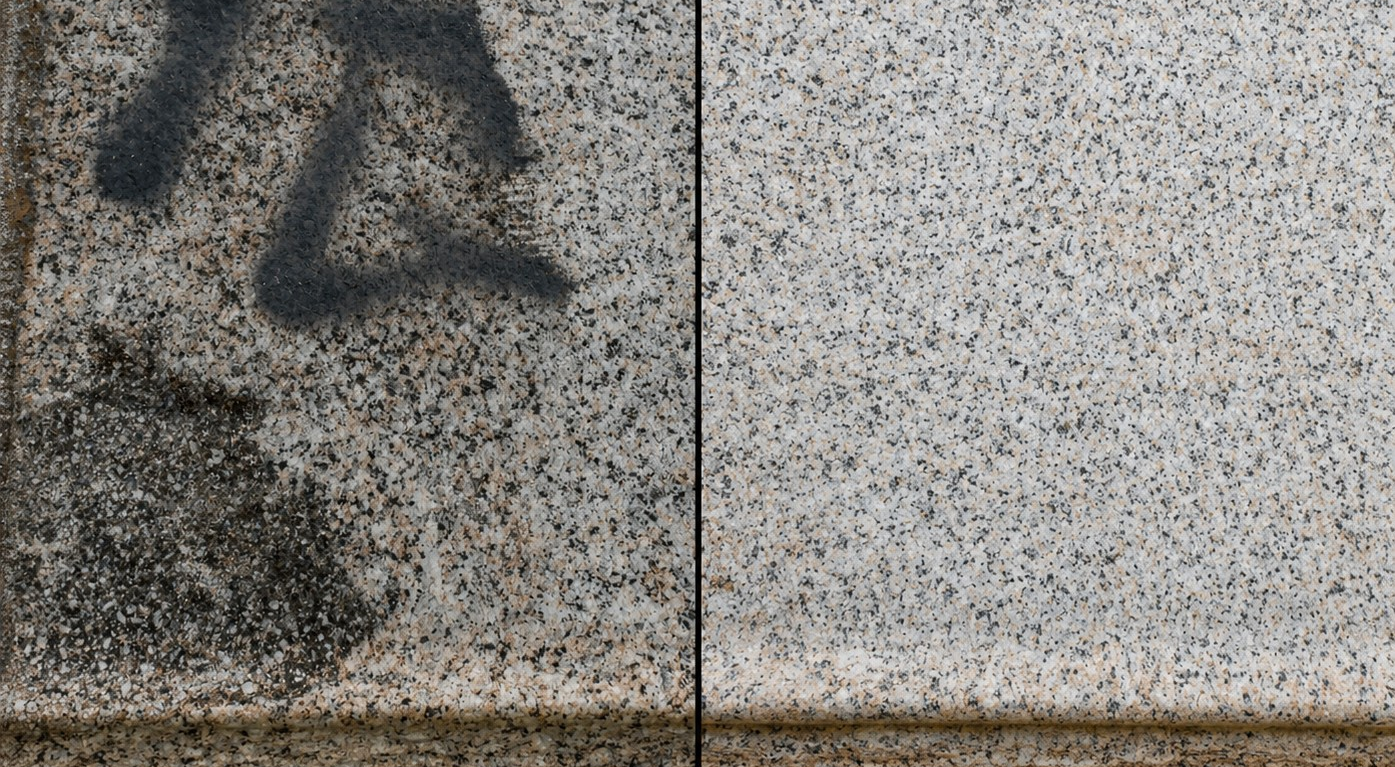

Before/AfterGranite Pedestal Restoration
Outdoor granite pedestal. Biological growth and mineral staining removed. Original stone recovered.

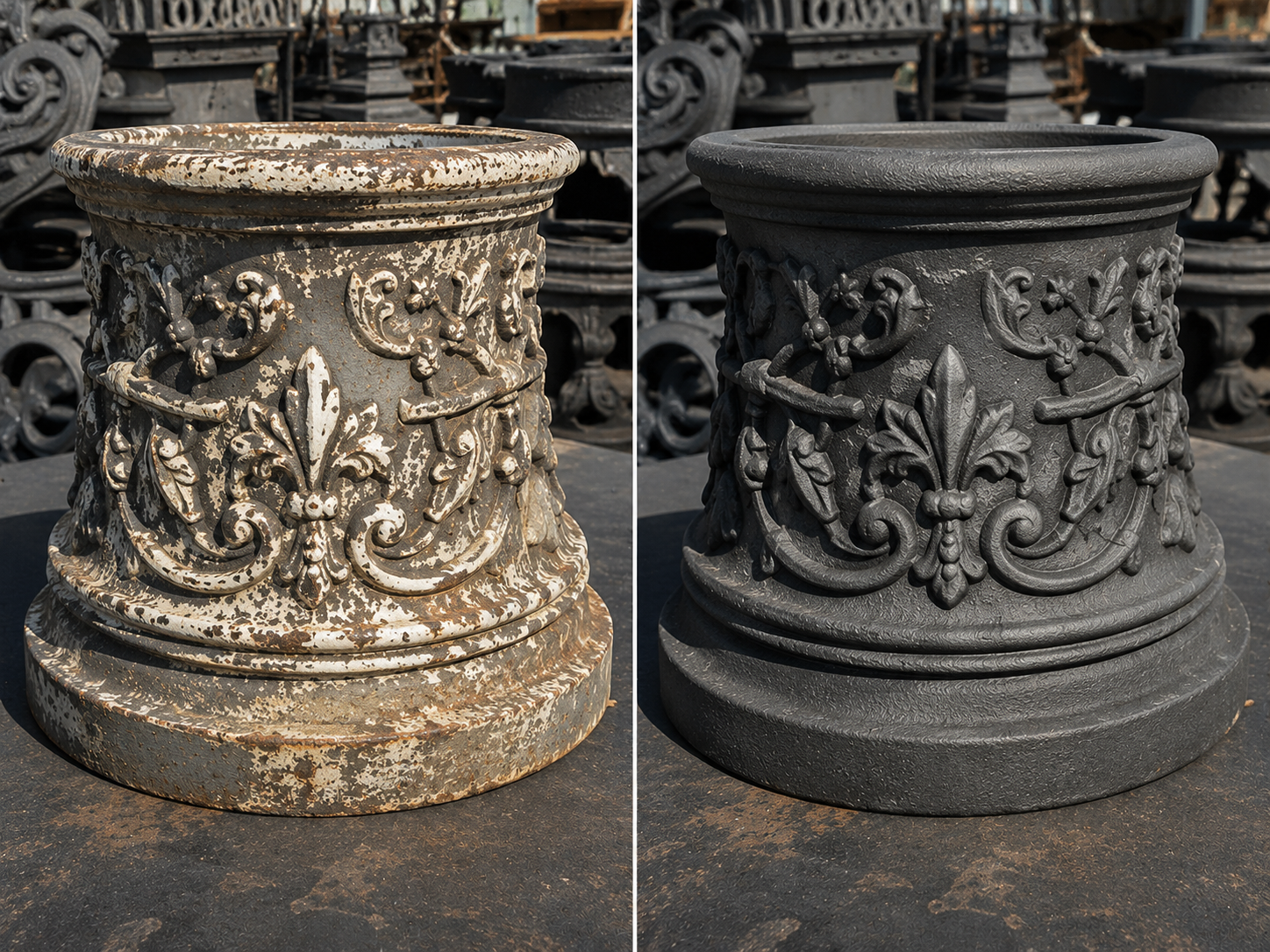

Before/AfterOrnamental Cast Iron Restoration
Ornate cast iron planter rim. Flaking paint removed from intricate scroll detail.
CompletedAntique Brass Clock Restoration
Victorian brass mantel clock. Tarnish and lacquer residue removed. Filigree detail preserved.

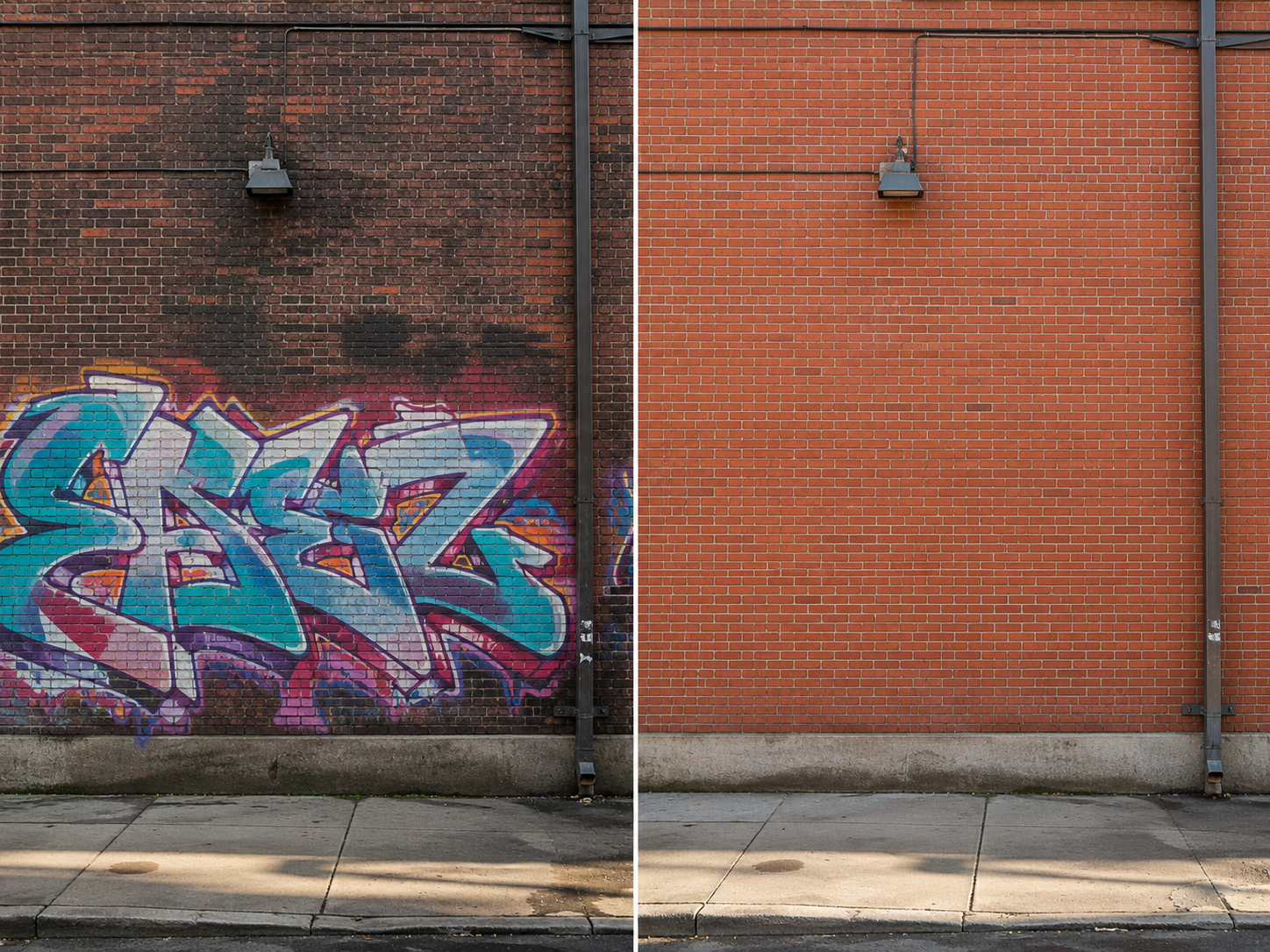

Before/AfterGraffiti Removal from Brick
Commercial brick wall. Multi-layer spray paint removal from a commercial brick wall; settings were selected for the brick and mortar condition.

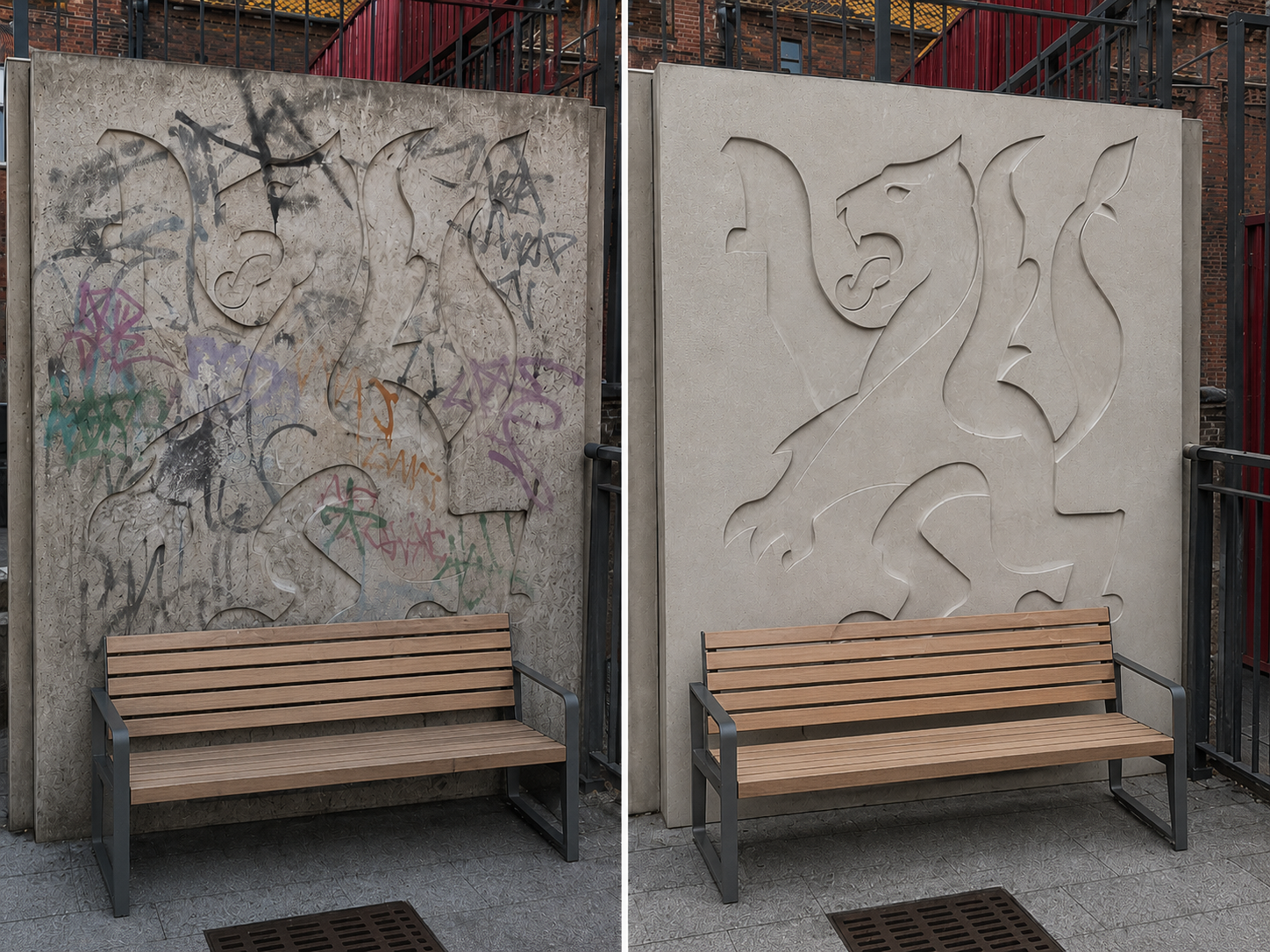

Before/AfterSculptural Relief Graffiti Removal
Cast concrete public art. Multi-color spray paint removal from cast-concrete public art; the completed surface was visually inspected.
Before/AfterStone Planter Restoration
Outdoor stone planter. Decades of biological growth and discoloration cleaned to original color.
